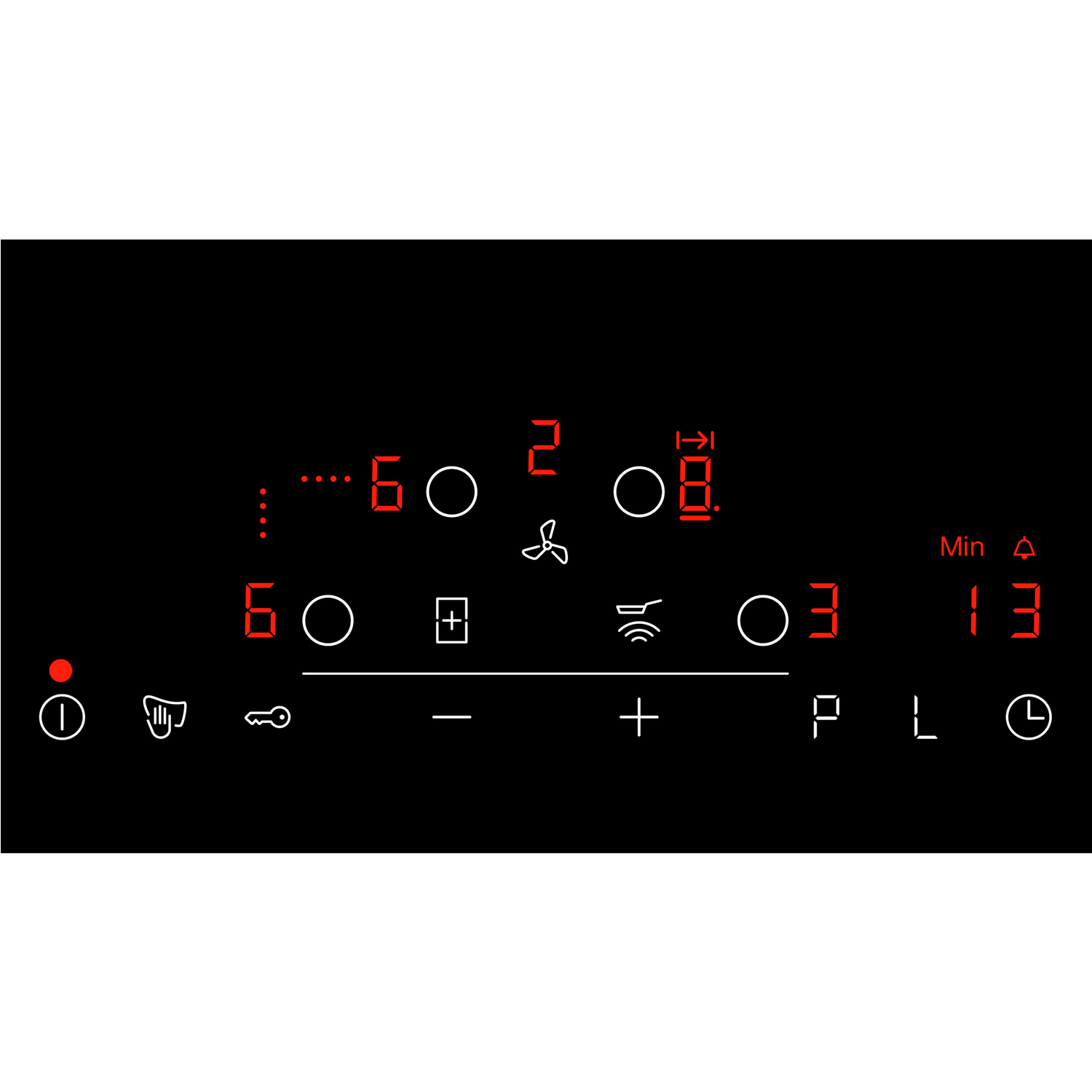

Control
- Touch control
- Frying Sensor:4 frying levels
Special features
- Combi zone
- 4 zone induction hob
- Variable 17-stage power settings for each zone
- ReStart function
- QuickStart function
- LED display for each zone
- Timer with automatic shut off for all zones
LED timer for each zone with switch off function and acoustic signal - Boost setting for all zones
- Measurement: (H/B/T) 197 x 826 x 546 mm
- Connected load: 6.9 kW
- Voltage: 220 - 240 V
- Cable included in packaging
- Length wire connection: 110 cm
- Individual energy consumption display
- 2 stage residual heat indicators
- Automatic pan recognition
4.6kW power output (20A); current management options for 16A, 13A or 10A connection
Safety cut out facility
Control panel lock
Control panel suspension - High-performance blower, Efficient BLDC-technology
- Energy Efficiency Class: A
- Average Energy Consumption: 53.5 kWh/year
- Blower Efficiency Class: A
- Grease Filtering Efficiency Class: B
- Large-scale stainless-steel grease filters with 12 layers for high grease filtration efficiency (up to 90% odour reduction)
- Noise min./max. Normal Level: 39/69 dB
- Ducted extraction kit needed (accessory Z8100X0)
- For recirculated extraction cleanAir recirculating kit (accessory Z8200X0) needed
- Fully-automatic extraction functionality with climateControl sensor
- Fully-automatic fan speed level control or optionally manual control by user
- 9 speeds plus 1 intensive
- Automatic 30 minutes after running
Technical information
- Cooking zones: 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 145 mm, 1.4 KW (max. Power levels 2.2 KW) Induction;1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction
- Extraction rate according to EN 61591:
- min. Normal use 150m³/h
- max. Normal use 550 m³/h
- Intensive setting 690 m³/h - Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air:
- Min. normal use: 39 dB(A) re 1 pW (25 dB(A) re 20 µPa sound pressure)
- Max. normal use: 69 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
- Intensive: 76 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure) - Performance in re-circulated extraction:
- min. normal setting 139 m3/h
- max. normal setting 557 m3/h
- Boost-/Intensive setting 618 m3/h - Noise level in re-circulated extraction:
- min. normal setting 42 dB(A) re 1 pW (31 dB(A) re 20 µPa sound pressure)
- max. normal setting 73 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure)
- Boost-/Intensive setting 75 dB(A) re 1 pW (62 dB(A) re 20 µPa sound pressure) - Grease filter efficiency: 90 %
- Odour reduction rate: 85 %
- Cast-iron air inlet grid, heat resistant, dishwasher safe
- Removable and detachable grease filter and liquid collector unit, dishwasher safe
- integrated stainless steel grease filters, dishwasher safe
- condensate and liquid collector unit; ca. 200ml capacity; dishwasher safe - Polymer liquid spillover safety tank, ca. 2.000ml capacity, Twist-off lock, dishwasher safe
- Saturation indicator for cleanAir odour filter
- Suitable for ducted or re-circulated extraction (Accessory is respectively needed)

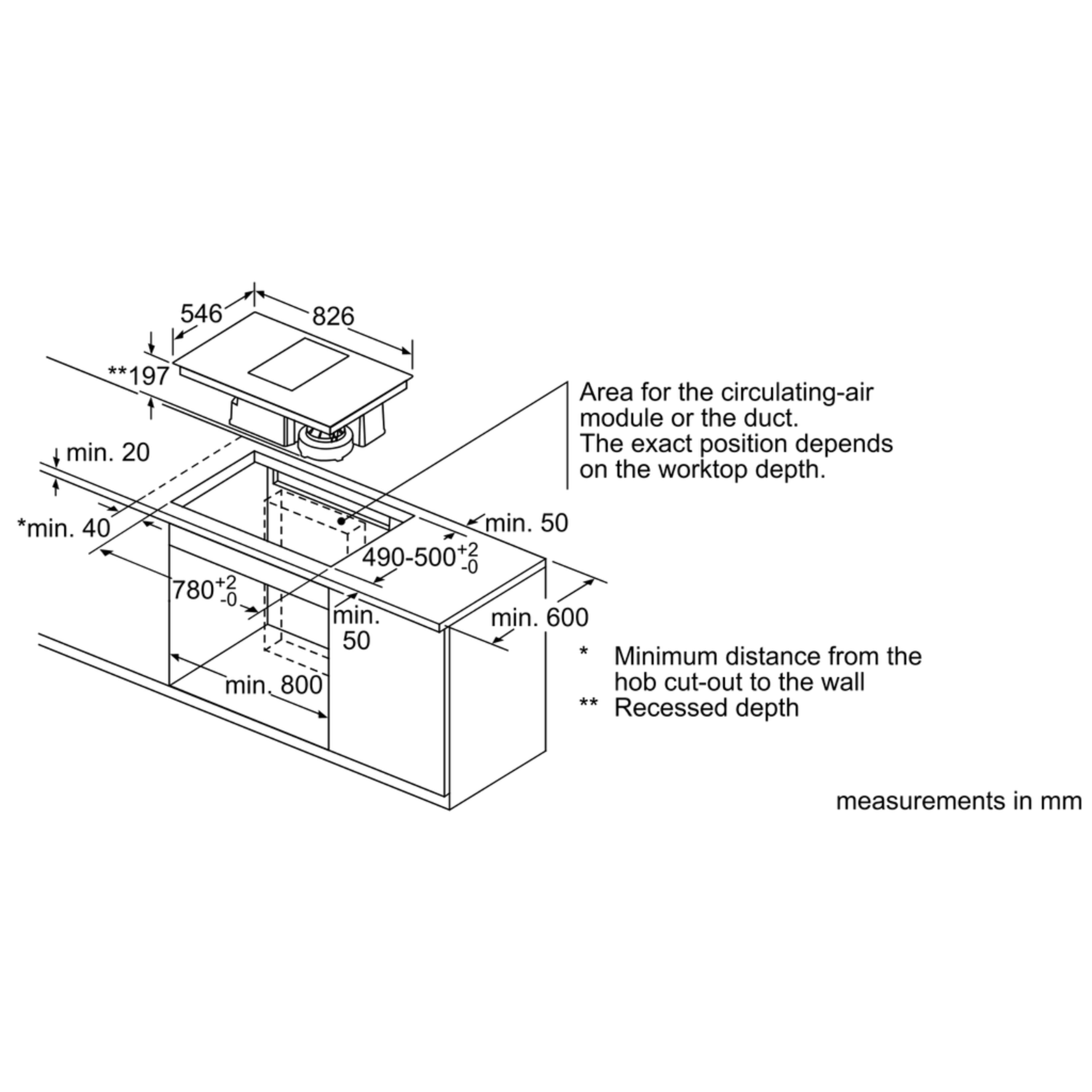

Installation Advice
- Base cupboard width: min. 80 cm.
- Worktop depth: min. 60 cm (with shortened drawers), max. drawer's depth can be used starting with a worktop depth of 70 cm.
- Immersion depth: 19.7 cm

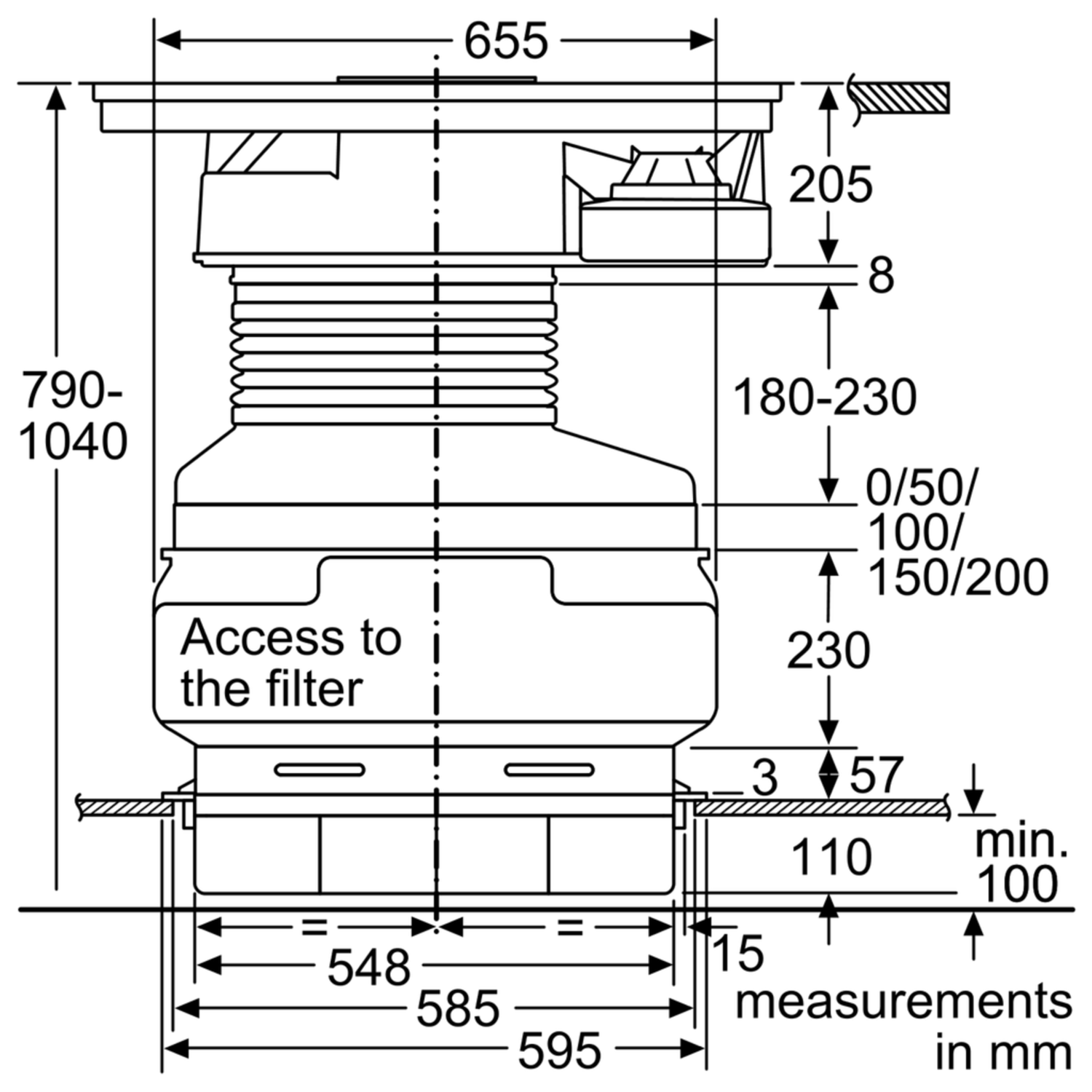

- Modules for ducted extraction or re-circulated extraction must be ordered separately as special accessory.
- Installation dimensions: (ID/W/D) 197 mm x 780 mm x 500 mm
- Min. worktop thickness: 20 mm
