What stands out
- Ideal for large homes and offices
- Control the climate of 4 rooms from just a single outdoor unit
- Cooling, heating and dehumidifying, great for year round use
- A+++/A++ Energy Efficiency rating
- Quiet in operation
- Oscillating louvers for better air distribution
The details
Unlike conventional split air conditioners that require a separate outdoor compressor unit for every room, this advanced multi-split air conditioner system is designed to power three rooms from a single compressor. This not only improves both outdoor space and external aesthetics, it also saves on expensive installation and running costs too. Plus, each indoor unit has its own remote control, allowing for individual control of all air conditioning units.
The stylish unit is an air conditioner for all seasons. It features both a heating and cooling mode to help you remain toasty in the winter, and cool in the summer. Plus, there's even a built-in dehumidifier which helps remove excess moisture from the air. The multi split Air Conditioning System comes with an impressive 5 year warranty..
The Details

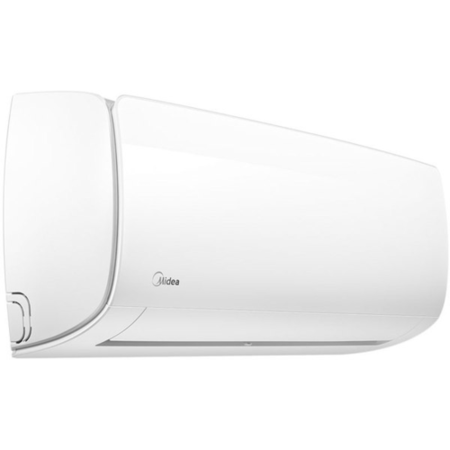

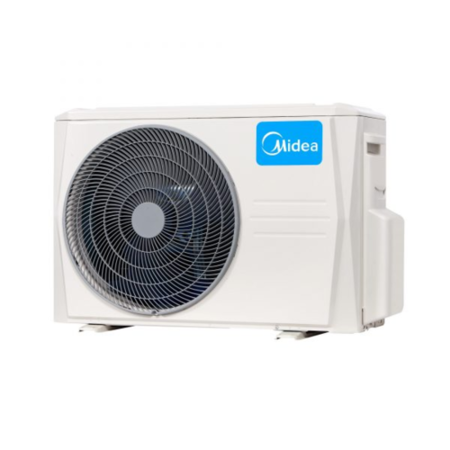

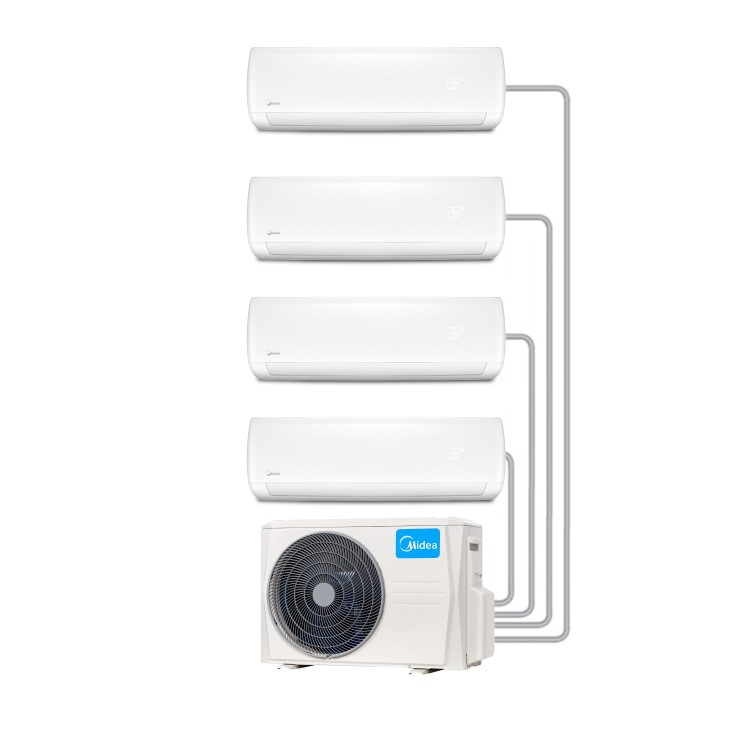

The P42KMS12K12K9K9K is an easy Install DC Inverter and is comprised of three main units (4 indoor units, 2x MSMBBU-12HRFN1-QRD0GW (B) (12,000 Indoor), 2x MSMBAU-09HRFN1-QRD0GW (B) (9,000 Indoor) & 1 outdoor unit M5OE-42HFN1-Q (42,000 Outdoor)). There are three internal units which are mounted on the wall of the room/ rooms you wish to cool supplied with indoor wall brackets, and then the corresponding external unit (called the condenser) which sits on the ground or on a wall bracket (can be purchased separately if required ) on the outside. Also in the box is a remote control for ease of use and your convenience.
Features
- Remote control
- Air purifying filter
- Quiet mode
- Timer
- Oscillating louvers
- Refrigerant Leakage detect
- Auto Restart function
Technical specifications: 9,000 Indoor
- Cooling Capacity (min-max) (kW): 2.6 (1.17 - 3.3)
- Heating Capacity (min-max) (kW): 3.0 (0.91 - 3.75)
- Total Cooling Capacity (kW): 2.49
- Power supply (indoor power via outdoor): 220-240V~ 50Hz, 1Ph
- Cooling Current (min-max) (A): 3.5 (0.4-5.5)
- Heating Current (min-max) (A): 3.5 (0.6-5.8)
- Max. Current (A): 9.5
- Seasonal Efficiency SEER/Class W/W: 6.8/A++
- Seasonal Efficiency SCOP/Class W/W: 5.1/A+++
- Indoor air flow (Hi/Mi/Lo) m3/h: 500/420/310
- Indoor sound pressure db. (A): 22
- Indoor unit Dimension (W*D*H) cm: 73.0 x 19.8 x 29.3
- Indoor unit Dimension Net/Gross weight Kg: 7.4/9.8
Technical specifications: 12,000 indoor
- Cooling Capacity (min-max) (kW): 3.5 (1.35 - 4.5)
- Heating Capacity (min-max) (kW): 4.0 (1.1 - 4.9)
- Total Cooling Capacity: 3.32
- Power supply (indoor power via outdoor): 220-240V~ 50Hz, 1Ph
- Cooling Current (min-max) (A): 4.7 (0.5-7.6)
- Heating Current (min-max) (A): 4.6 (0.7-7.7)
- Max. Current A: 10.0
- Seasonal Efficiency SEER/Class W/W: 7.2/A++
- Seasonal Efficiency SCOP/Class W/W: 5.3/A+++
- Indoor air flow (Hi/Mi/Lo) m3/h: 419/458/266
- Indoor sound pressure level db. (A): 27
- Indoor unit Dimension (W*D*H) CM: 81 x 20 x 30
- Indoor unit Dimension Net/Gross weight Kg: 8.2/11.1
Technical specifications: 42,000 Outdoor
- Power supply (V-ph-Hz): 220-240V- 50Hz, 1Ph
- Cooling Capacity Btu/h: 28000-40000
- Cooling Input (W): 2700-3700
- Cooling Rated current (A): 11.6-16.0
- Heating Capacity Btu/h: 28000-40000
- Heating Input (W): 2580-3570
- Heating Rated current (A): 11.1-15.8
- Max. Input current (A): 22
- Max. Input consumption (W): 4700
- Max. Input current (A): 21.5
- Outdoor air flow (m3/h): 5500
- Outdoor Dimensions (WxDxH cm): 94.6 x 41 x 81
- Outdoor Packaged dimensions (WxDxH cm): 109 x 50 x 86.5
- Net/Gross weight (Kg):76/81
- Refrigerant Type: R410A
- Piping size mm (inch): 5 x Φ6.35/4x Φ9.52+1xΦ12.7 (5x1/4"/4x3/8"+1x1/2")
- Max. Length for all room: 75
- Max. Length for one indoor unit: 30
- Copper Pipes Maximum difference of height when the outer unit is located at a higher level than the internal units: 10 m
- Copper Pipes Maximum difference of height when the outer unit is located at a lower level than the internal units: 15 m
- Copper Pipes the maximum height difference between the internal units: 10 m
Tech stuff
Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gassed and sealed. The indoor unit should be fitted to the wall using a mounting plate supplied in the box. The condenser should be fixed on the ground or wall mounted on the outside of the wall, using the optional wall-mounting bracket. The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing
These units contain a gas which is governed by F-Gas regulations. The gas must be handled by a qualified F-Gas personnel. 2 Year warranty is subject to commissioning by qualified F-Gas engineers. 5 Years extended parts warranty is subject to annual service.
