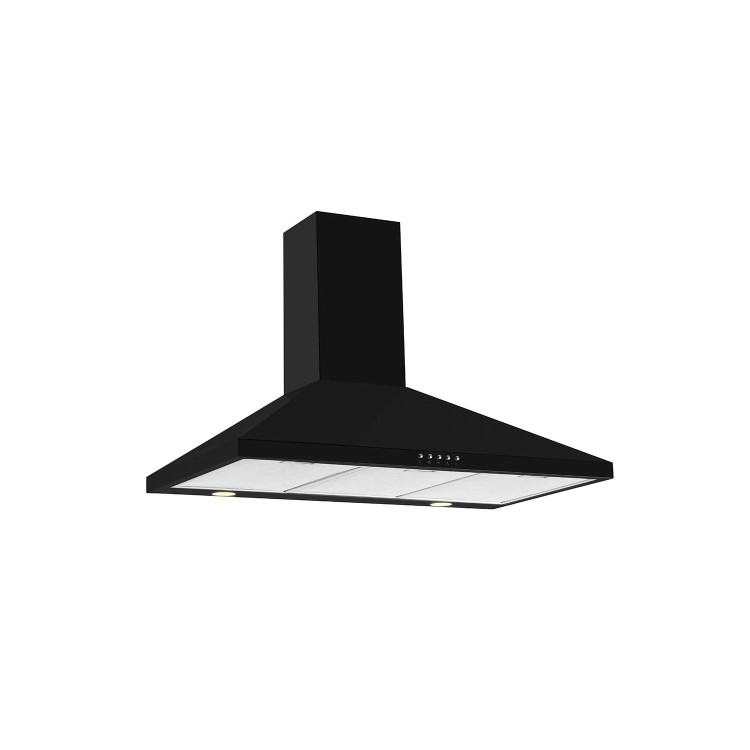

CDA 90cm Chimney Hood - Black

Name: CDA 90cm Chimney Hood - Black
Brand: CDA
SKU: ECH93BL

Compare

SKU: ECH93BL Quickfind Code: 1837061

SAVE 15%

Unsure what extraction rate you need? Use our handy calculator

What are the kitchen dimensions?

Length (m)

Width (m)

Height (m)

Extraction rate required (m³/h)

Shop by extraction rate

Low »
under 349m³/h

Medium »
350 - 499m³/h

High »
Over 500m³/h

What is an extraction rate?

Cooker hoods come with different extraction rates, which determine how quickly the air is changed in the kitchen. It’s recommended that your cooker hood should change the air around 10 times per hour. So, the larger the kitchen the higher the extraction rate.

The extraction rate your kitchen needs all depends on its size. The faster the extraction rate the faster the air will be cleaned, although the noise level may go up, so faster isn’t always better. Take a look at how to work out your extraction rate above.

LIMITED STOCK! Less than 10 remaining

Was: £199.00 You save: £30.00

£169.00

Installation available in basket

Why buy me

475m³/h extraction rate ideal for mid size kitchens
Maximum noise rate 64dB similar to a dishwasher
Easy to use push button controls
Dimensions: (H)65cm x (W)90cm x (D)50cm
3 fan speed settings

click

Extended warranties

3 Year Warranty for just

£60.00

5 Year Warranty for just

£90.00

Extraction rates

Extraction rate at third speed: 475 m³/hr
Extraction rate at second speed: 360 m³/hr
Extraction rate at first speed: 280 m³/hr

Extraction Rates And Noise

Noise level at third speed: 64 dBA
Noise level at second speed: 60 dBA
Noise level at first speed: 53 dBA

Dimensions

Width: 900mm
Depth: 500mm
Height: 644-1024mm

Filters

Aluminium grease filter
Charcoal filter code: CHA37
Number of charcoal filters (optional): 2

Lighting

Lighting: 2 X LED
Wattage of light: 1.5 W

Energy

Energy rating: C
Annual energy consumption: 71 kWh

Technical Specification

Outlet diameter: 150 mm
Required height over electric hobs: 650 mm (min)
Required height over gas hobs: 700 mm (min)
Motor Input: 150 W

View more View less

General information
Brand	CDA
Performance
Speed Settings Multiple speed settings give ultimate versatility for a range of foods, the higher the setting, the finer the ingredients. Variable speeds give you even more control.	3
Maximum Extraction Rate	475m³/h
Maximum Noise Level	64dB
Annual energy consumption	71kWh/a
Installation
Installation Type	Wall-mounted
Vent Location	Top
Cable length	180cm
General information
Cooker Hood Type	Chimney Hoods
Colour	Black
Air Extraction Type	Extraction & recirculation
Control Type	Push Button Control
Number of lights	2
Type of lamps used	LED
Grease filter material	Aluminium
Warranty	2 years labour/5 years parts
Efficiency Information
Fluid dynamic efficiency class	D
Grease filtering efficiency class	C
Lighting efficiency class	A
Energy Rating	C
Dimensions & Weight
Maximum height	1024mm
Minimum Height	644mm
Height	65cm
Width	90cm
Depth	50cm
Weight	9.6kg
Diameter of Air Outlet This is the diameter of the outlet that connects to ducting if extracting to an external vent.	150mm
Chimney Depth	189mm
Chimney Width	219mm
