Key performance features:
- max. Normal use 530 m³/h
- Intensive 750 m³/h
- Noise max. Normal Level: 62 dB*
Features
- Electronic control
- 3 power levels and 2 intensive settings
- TouchControl for extractor speeds and light
- 1 x 7W LED-module
- Colour Temperature: 3500 K
- Automatic after running (10 min)
- 2 removable metal grease filter cassettes
- Saturation indicator for metal and charcoal filter
- Rim ventilation
Design
- Black
- Worktop ventilation
- For installation in a kitchen cabinet
- Suitable for regular or flush installation in worktops.
- Extension height 300 mm
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit (accessory) needed
- In recirculation mode no combination with gas hobs allowed.
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 530 m³/h
- Intensive 750 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 62 dB(A) re 1 pW (48 dB(A) re 20 µPa sound pressure)
- Intensive: 67 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
- Noise max. Normal Level: 62 dB*
- Power rating: 317 W
- Light Intensity: 203 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.5 m
- Diameter pipe Ø 150 mm (Ø 150 mm enclosed)

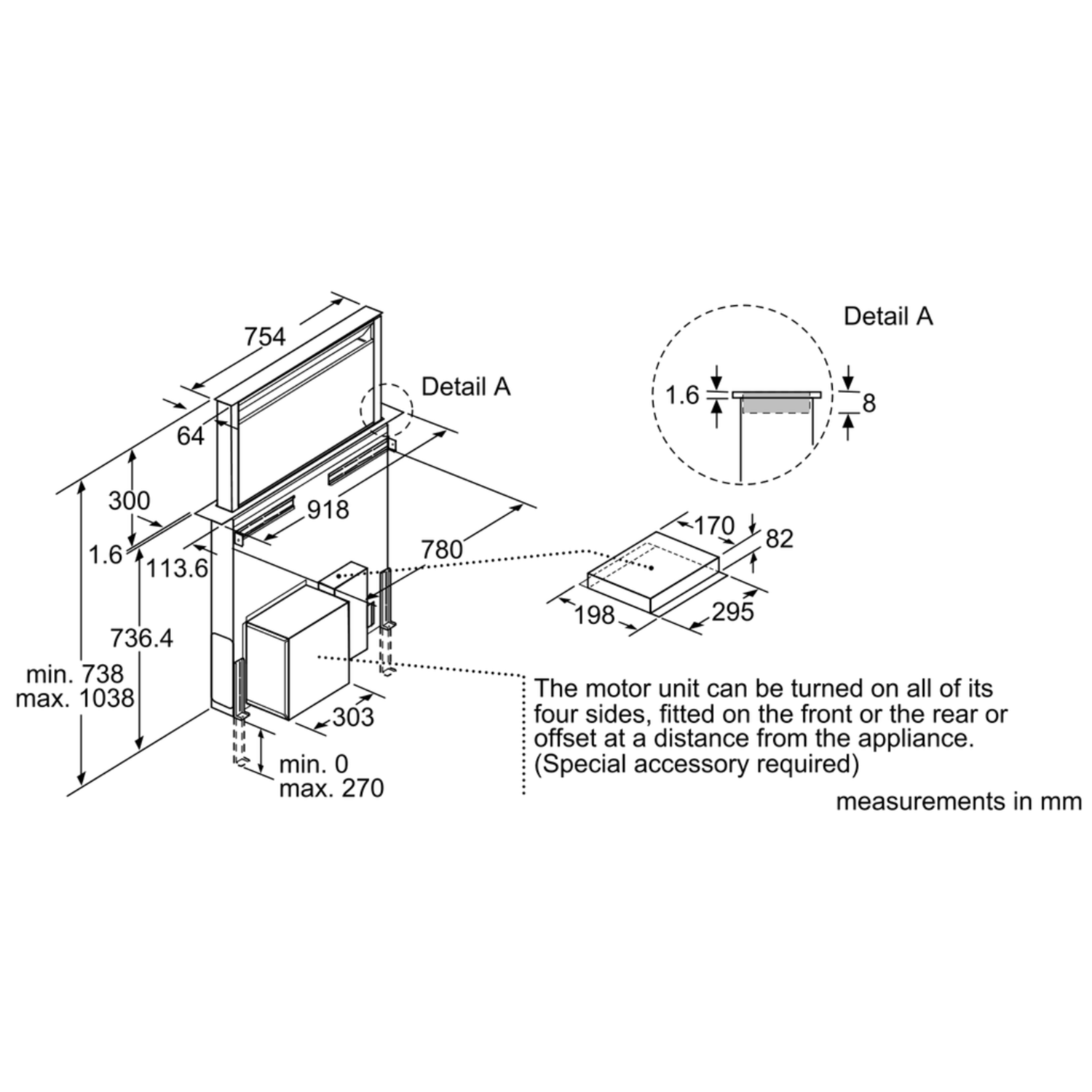

- Dimensions exhaust air (HxWxD): 738-1038 x 918 x 268 mm
- Dimensions recirculating (HxWxD): 738-1038 x 918 x 268 mm
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- Average Energy Consumption: 53.5 kWh/year*
Optional accessories
- Recirculating kit
