What stands out
- Smart WiFi control enables convenient operation and remote access.
- Ceiling-mounted, multi-cassette design with a self-diagnostic function for easy maintenance.
- Triple system: controls three indoor units with one outdoor unit, offering WiFi connectivity for smart control.
- Ideal for large office spaces up to 72 sqm, providing cooling, heating, and dehumidifying for year-round comfort.
- Features energy-saving inverter technology and a heat pump for efficient heating.
- Ultra-quiet operation ensures a peaceful environment, with a remote control for each indoor unit.
- Offers a 24-hour timer, sleep mode, health mode, and auto-restart function for enhanced convenience.
- Backed by a 5-year warranty.
Smart WiFi control allows for seamless operation, complemented by a self-diagnostic function for easy maintenance. Enjoy year-round comfort with WiFi connectivity, cooling, heating, and dehumidifying capabilities, all powered by energy-saving inverter technology and an efficient heat pump. The ultra-quiet operation ensures a peaceful environment, while individual remote controls for each indoor unit and a 24-hour timer offer personalized settings. Added features like sleep mode, health mode, and auto-restart enhance usability, and peace of mind is guaranteed with a comprehensive 5-year warranty.

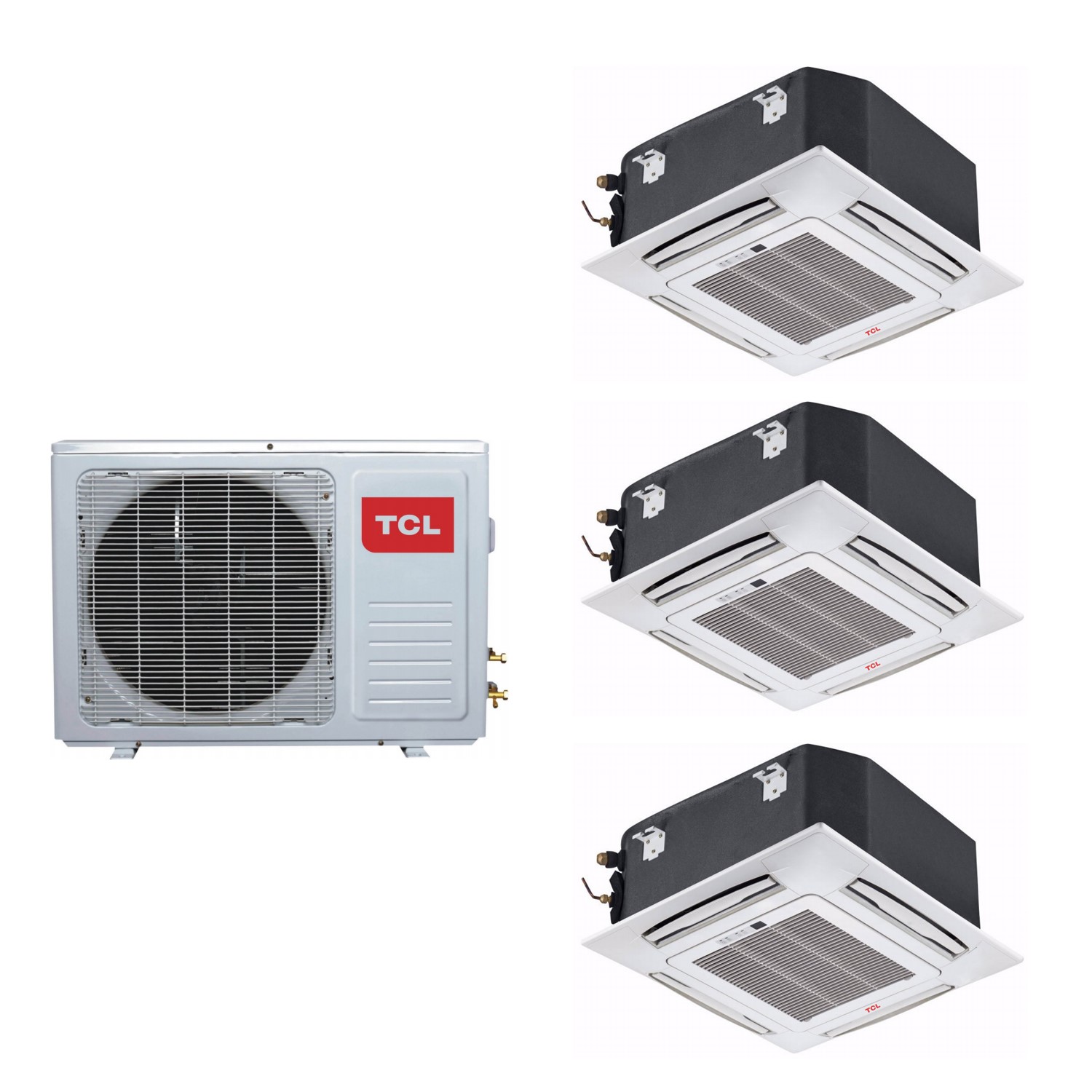

Your purchase comes with three indoor units and one outdoor unit. The three indoor units which are known as a triple system connect to the single outdoor unit. The new TCL Smart WiFi control cassette type inverter air conditioner has high energy efficiency A++ for cooling mode and A+ for heating mode. The TCL Cassette Air Conditioning Units is one of the most advanced on the market.
Essential info
- Net dimensions per indoor (W x L x D):57.4 x 57.4 x 25 c
- Net dimensions outdoor (W x L x D): 94 x 34 x 91 cm
- Weight (kg), per Indoor: 20
- Weight (kg), Outdoor: 68
- Piping Size (mm), Liquid Ø mm (inch): 6.35 (1/4)
- Piping Size (mm), Gas Ø mm (inch): 9.52 (3/8)
- Maximum Piping Length (M): 15
- Maximum Piping Height (M): 10
- Applicable Area: 72 sqm
Performance
- Cooling Capacity: 27000 Btu
- Cooling Capacity: 8.2 kW
- Heating Capacity: 27000 Btu
- Heating Capacity: 9.0 kW

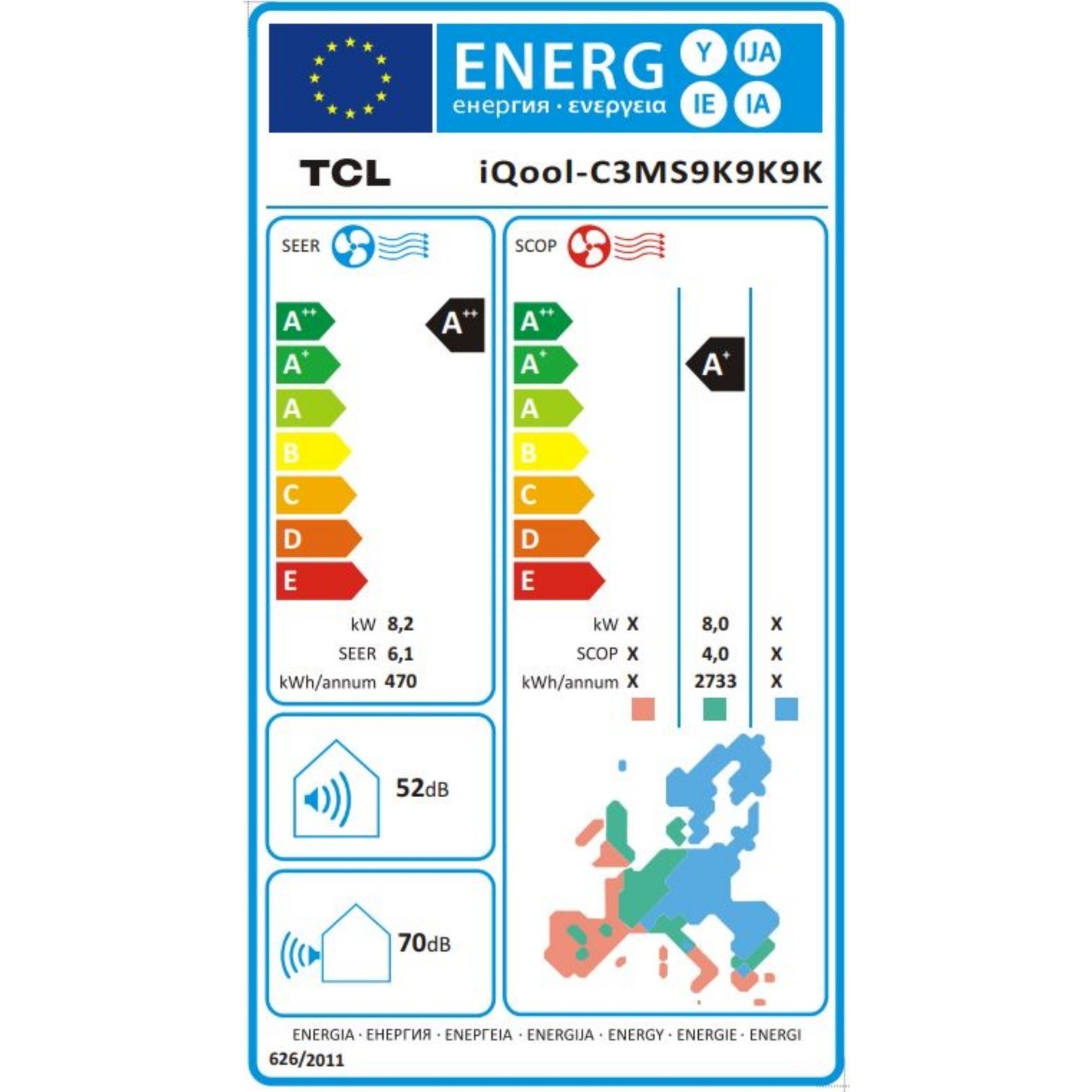

- Energy Rating: A++/A+
- Air Flow Volume m3/h: 500
- SEER (Average): 6.10
- SCOP: A++/A+
Features

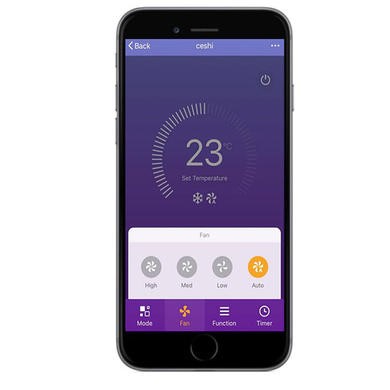

- Smart WiFi control
- Self-diagnostic function
- WiFi, Cooling, Heating & Dehumidifying
- Energy Saving Inverter Technology
- Heat Pump for efficient heating
- Ultra Quiet Operation
- Remote control for each indoor unit
- 24 Hour Timer
- Sleep Mode
- Health mode
- Auto restart function
- 5 years warranty
Donwload user manual HERE
Tech stuff
Our units are designed to reduce the installation time. The indoor and outdoor units are pre-gassed and sealed. The condenser should be fixed on the ground or wall mounted on the outside of the wall, using the optional wall-mounting bracket. The unit must be installed by a F-Gas qualified AC engineer. Please ensure the qualified fitter reads the user manual in full before installing
These units contain a gas which is governed by F-Gas regulations. The gas must be handled by a qualified F-Gas personnel. 2 Year warranty is subject to commissioning by qualified F-Gas engineers. 5 Years extended parts warranty is subject to annual service.
* Note: In order to reduce the Global Warming Potential, the outdoor unit footprint and provide extra energy savings; our outdoor units have a rating lower than the sum of indoor units BTU. Please note this will not affect the cooling or heating in individual rooms as those units are variable cooling inverters and they balance the cooling or heating power among the indoor units to achieve the target temperature in the shortest time. Please make sure you size the rooms as per our guidance or call for tech support.
