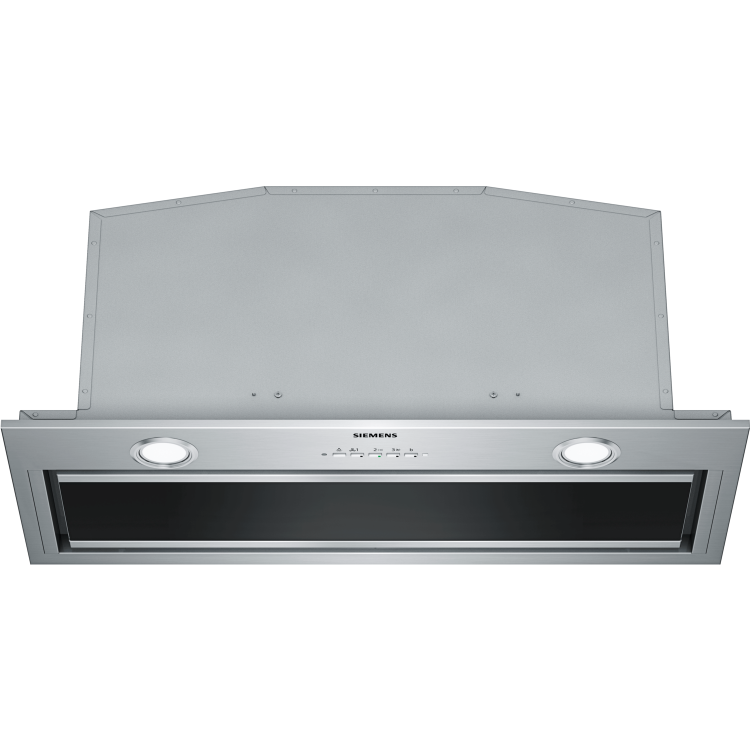

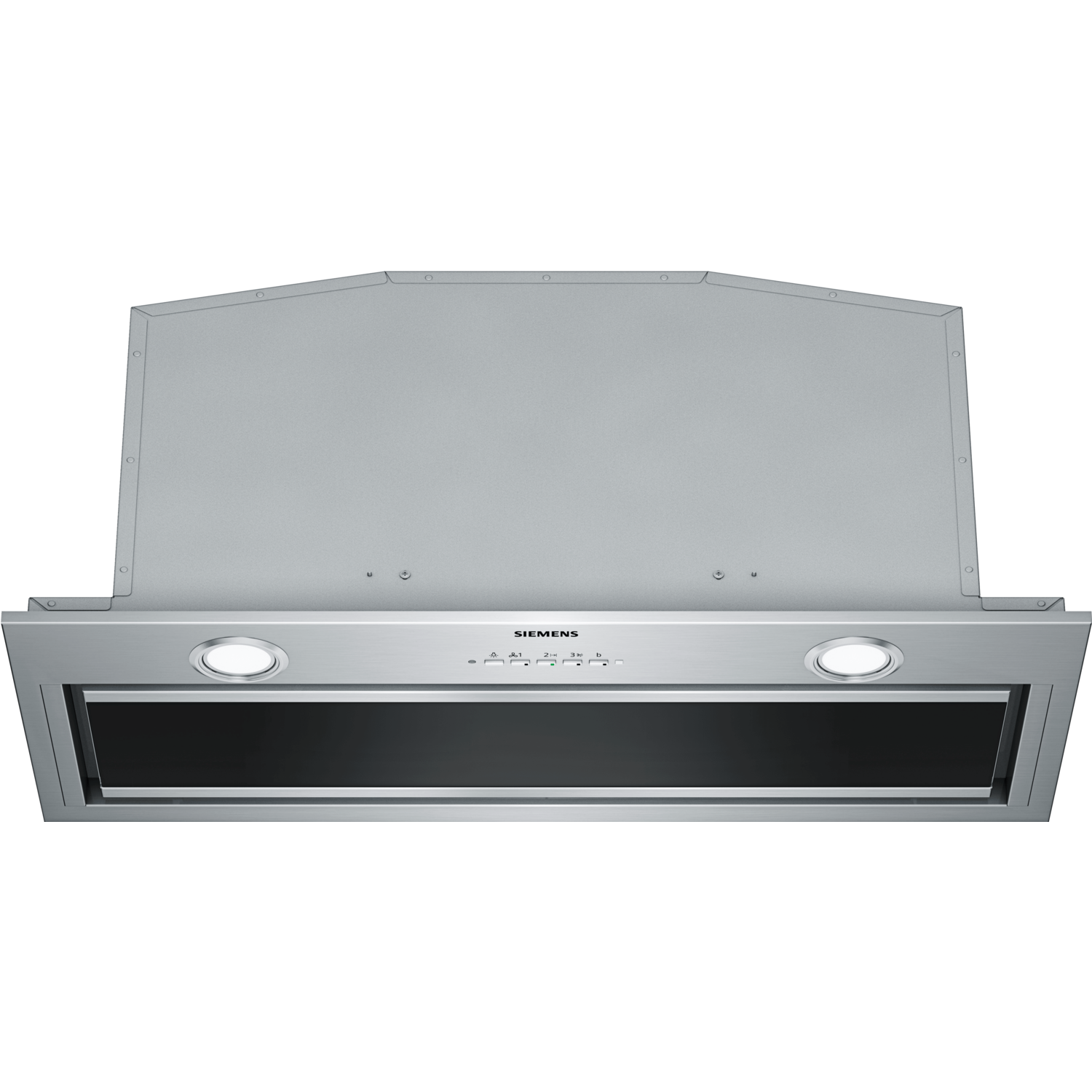

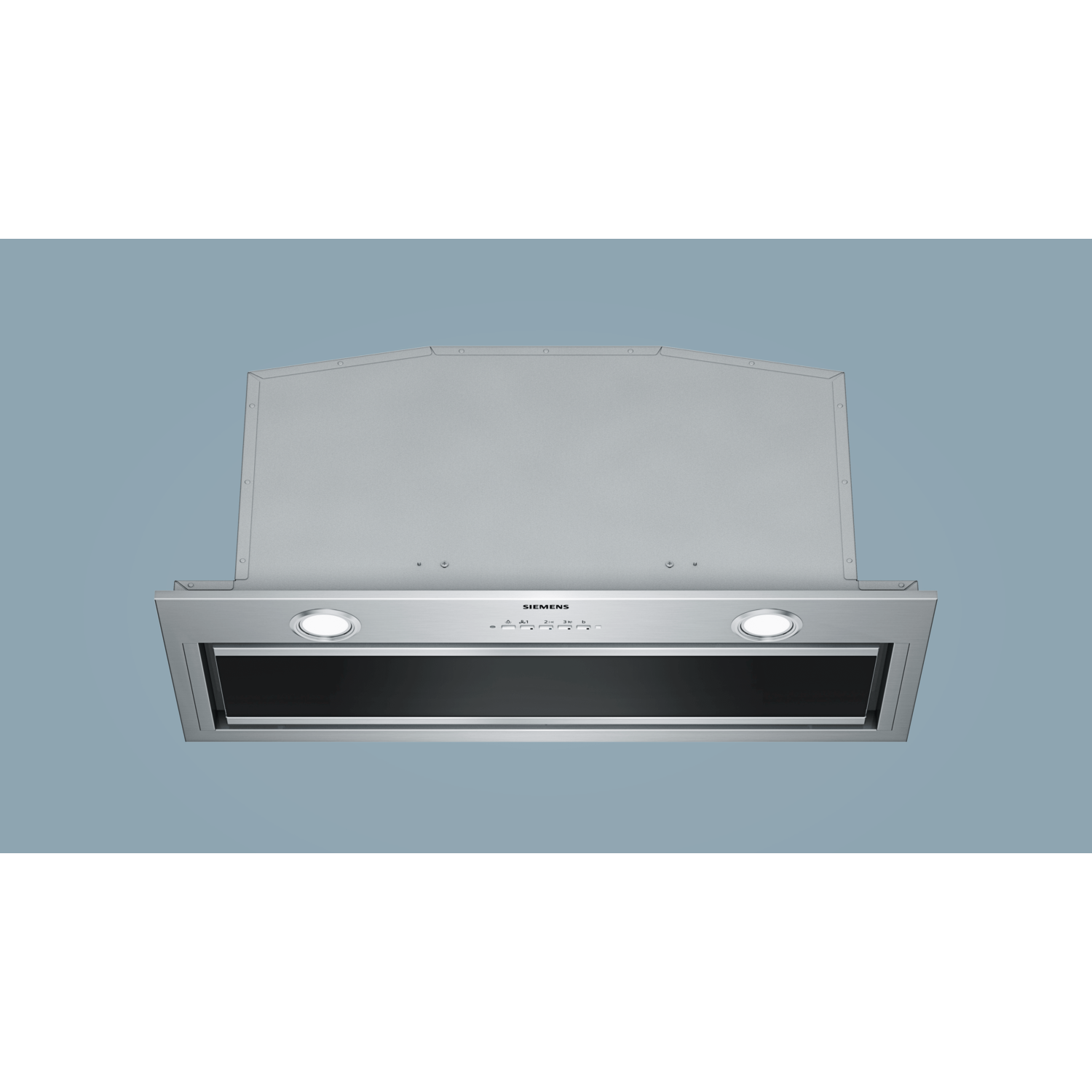

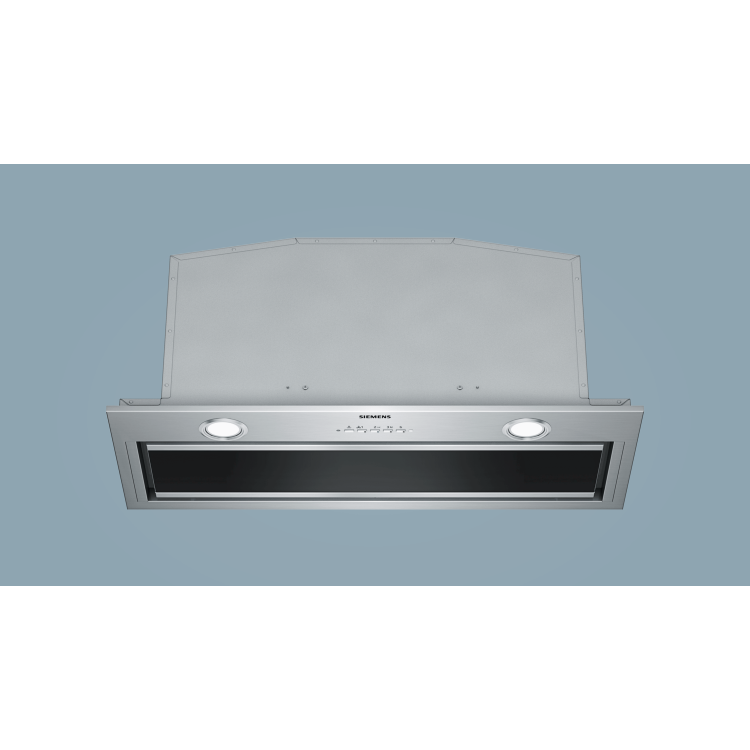

Design
- 70 cm wide
- Stainless steel
- White electronic display
- Electronic control via Soft touch button control
- Light colour: warm white
- Black glass canopy

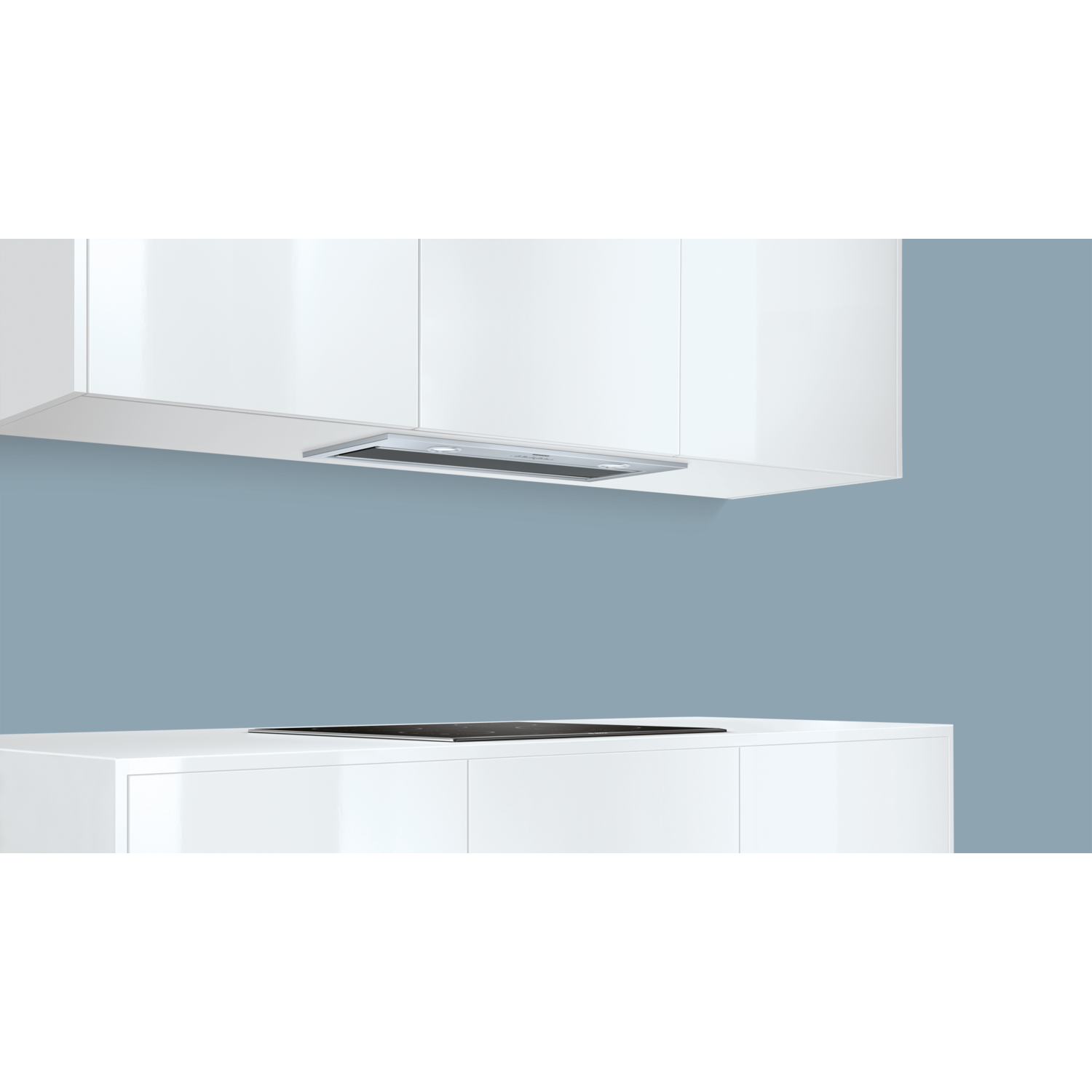

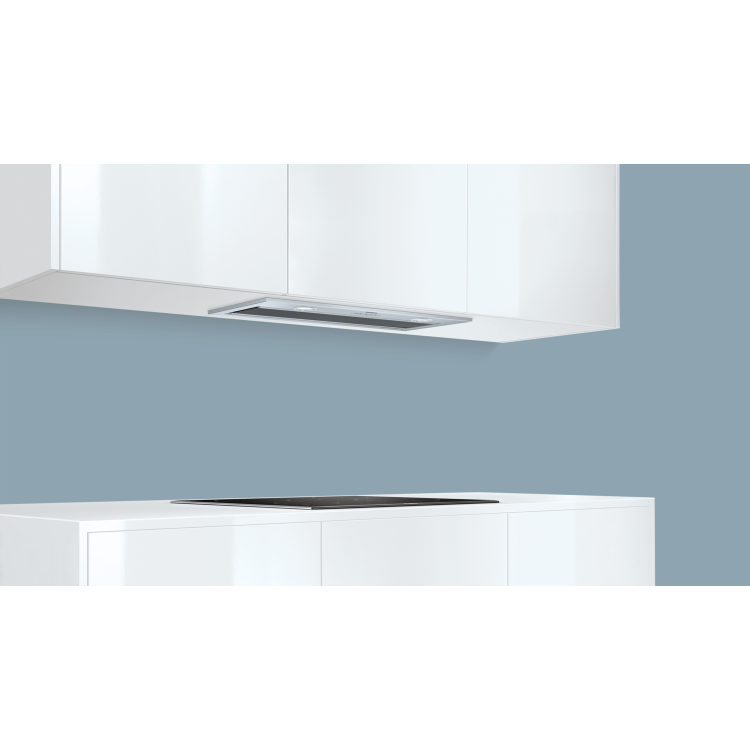

- For installation in a kitchen cabinet
- Designed for suspended or flush ceiling installation
Key features

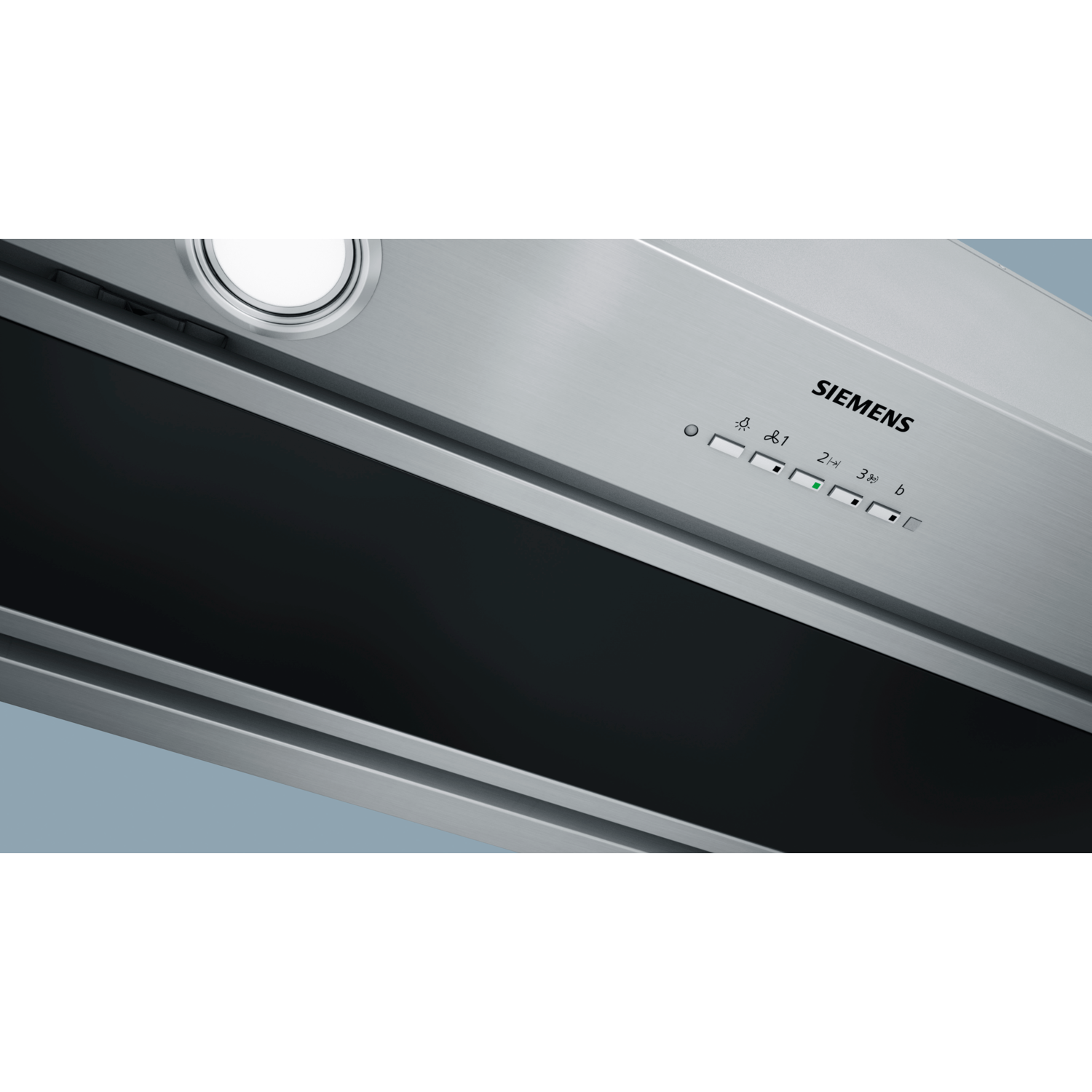

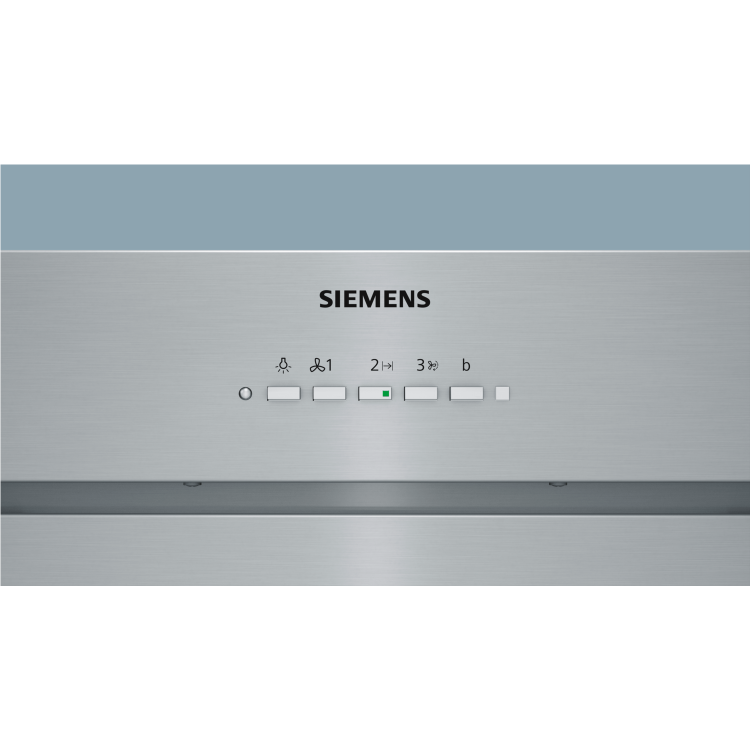

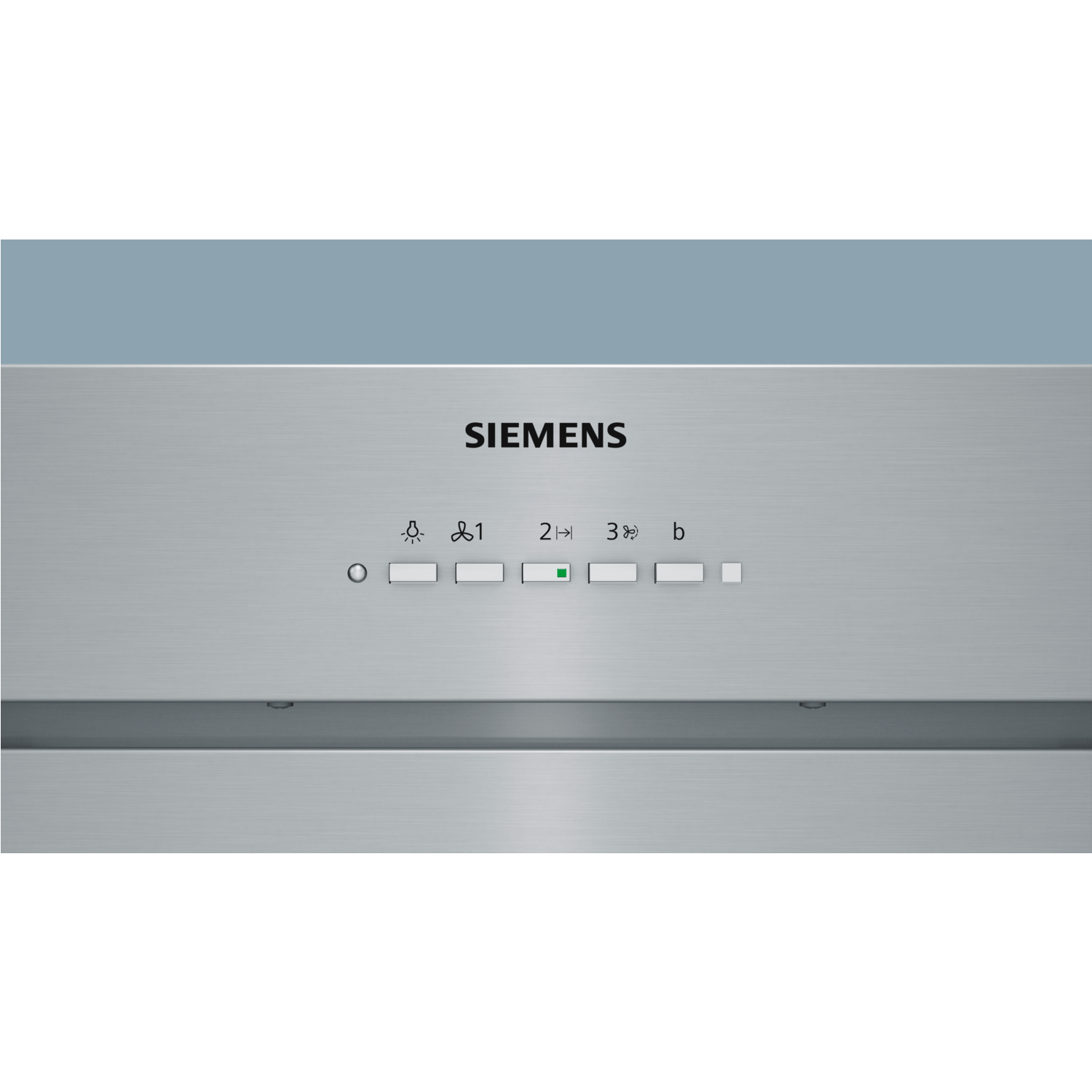

- Soft touch button control for extractor speeds and light
- 2 x 1W LED lights
- softLight with dimmer function

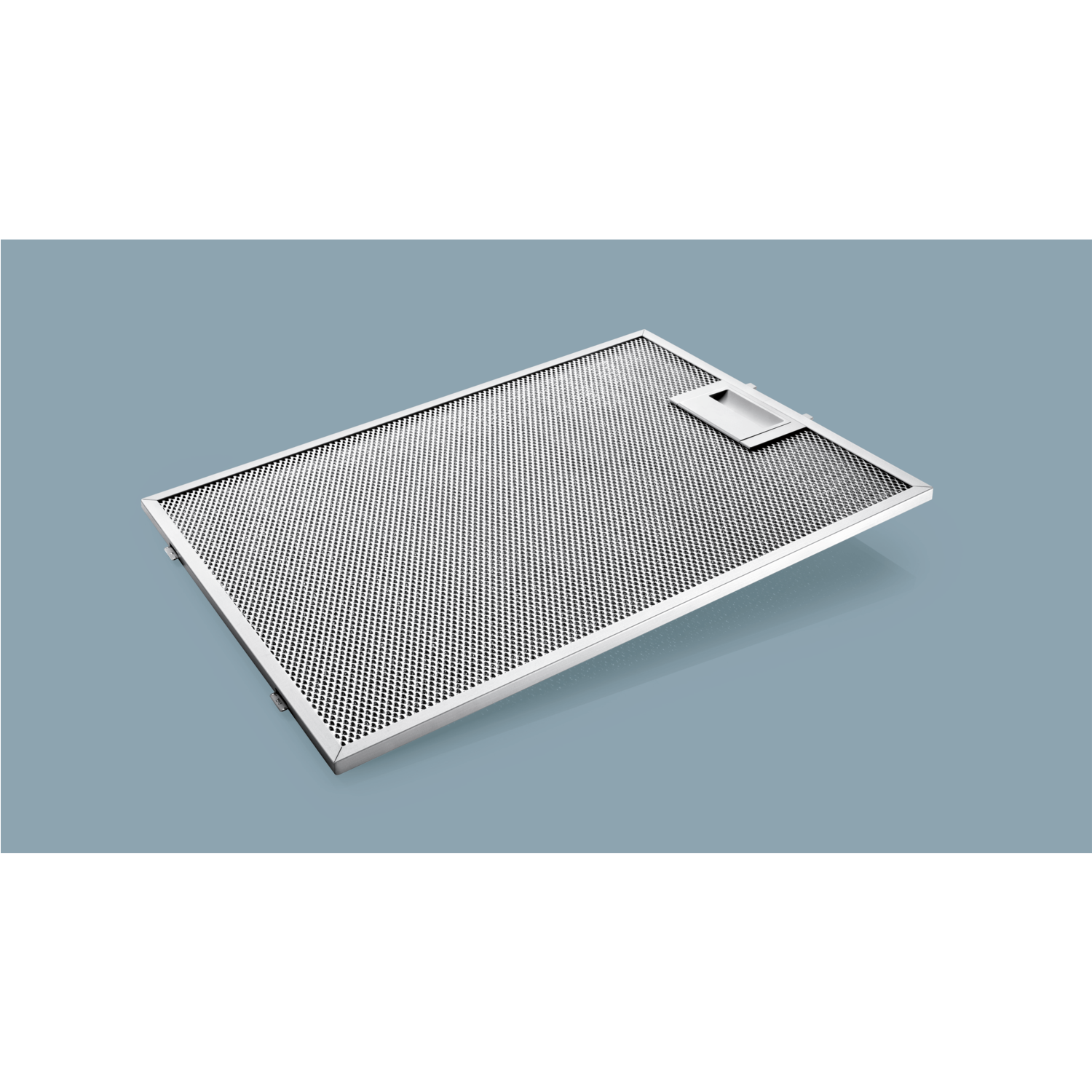

- 2 x metal grease filter cassettes
- Grease filter saturation indicator
- Glass filter cover, Steel filter cover
- Interval operation
- Rim ventilation
Performance/technical information
- Suitable for ducted and re-circulating operation
- For recirculated extraction charcoal filter (accessory) needed
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use 570 m³/h
- Intensive 770 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use: 65 dB(A) re 1 pW (51 dB(A) re 20 µPa sound pressure)
- Intensive: 72 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
- 3 x power levels plus intensive setting
- Power rating: 272 W
- Automatic intensive revert
- 30 minutes
- Noise max. Normal Level: 65 dB*
- Extractor hose 150 mm
- Dimensions (WxD): 700 x 300 mm
- built-in dimensions (HxWxD): 418 x 676 x 264 mm
- Dimensions exhaust air (HxWxD): 418-418 x 700 x 300 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Light Intensity: 244 lux
- Colour Temperature: 4000 K
- Average Energy Consumption: 49.1 kWh/year*
- Energy Efficiency Class: A*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
